AMD Software Adrenalin Edition: The Complete Guide for 2026

Last updated: October 2026

What Is AMD Software Adrenalin Edition?

AMD Software Adrenalin Edition is the official driver and control suite for Radeon graphics. It ships as one download and installs both the display driver and a settings interface. As a result, updates, game profiles, and performance features all live in a single window. best free drawing tools.

The suite replaced Radeon Software Crimson Edition, which followed the older Catalyst line. AMD has shipped Adrenalin releases since December 2017. Each release usually targets new games, fixes known bugs, and occasionally adds features. VirtualBox software guide.

Adrenalin runs on Windows 10 and Windows 11. It also supports Radeon graphics built into Ryzen processors, not just discrete cards. However, it does not install on NVIDIA or Intel GPUs.

The software covers four broad areas: driver management, game tuning, capture and streaming, and display or video output. Each area has its own tab inside the interface, so navigation stays predictable. corporate software inspector tools.

Supported Hardware

Adrenalin supports most Radeon hardware released since the Polaris era. The list includes:

• Radeon RX 9000 series (RDNA 4)
• Radeon RX 7000 series (RDNA 3)
• Radeon RX 6000 series (RDNA 2)
• Radeon RX 5000 series (RDNA)
• Radeon VII and Radeon RX Vega
• Radeon RX 500 and RX 400 series (Polaris)
• Ryzen processors with Radeon Vega or RDNA integrated graphics
• Radeon mobile GPUs in laptops and handhelds

Radeon Pro workstation cards use AMD Software: Pro Edition instead. That package follows a slower release cycle and favors stability over day-one game support. Therefore, workstation owners should install the Pro build rather than the consumer one. best free antivirus software.

AMD eventually moves older GPU families to legacy status. Those cards stay on a final driver release and stop receiving game optimizations. Consequently, an RX 580 and an RX 7600 may be on very different driver versions.

System Requirements

• Windows 10 64-bit or Windows 11 64-bit
• An AMD Radeon GPU or a Ryzen processor with Radeon graphics
• Roughly 2 GB of free disk space for the download and extracted files
• Administrator rights during installation
• An internet connection for driver downloads and online features

How to Install AMD Software Adrenalin Edition

Installation is straightforward when the correct driver is matched to the correct GPU. Follow these steps in order:

1. Identify your exact GPU model. Open Task Manager and check the Performance tab, run dxdiag, or use a utility such as GPU-Z. The model name matters more than the brand name on the box.
2. Download the right driver. Go to amd.com/support and search by product, or use the auto-detect tool. Avoid third-party driver sites, because bundled installers often add unwanted software.
3. Pick a driver branch. Recommended (WHQL) builds are certified. Optional builds arrive first and usually target brand-new games.
4. Close games and monitoring tools. Overlays and benchmarking apps can lock driver files. As a result, the installer may fail halfway through.
5. Run the installer as administrator. Right-click the file and choose that option, or accept the Windows prompt.
6. Choose the install type. Select Factory Reset when switching GPU families or fixing persistent problems. Otherwise, a standard install preserves your current settings and profiles.
7. Reboot if prompted. Some features, such as display scaling and HDR, only apply after a restart.

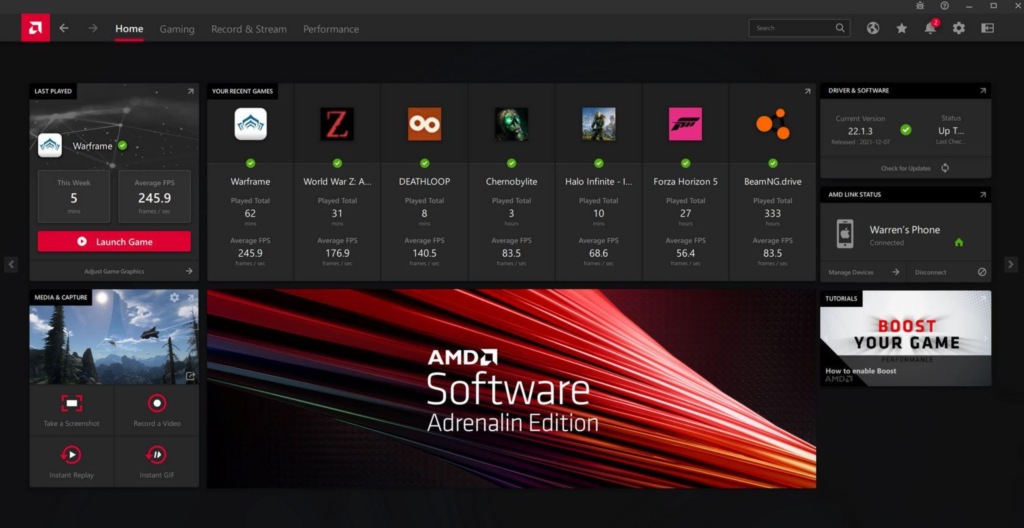

8. Confirm the version. The driver number appears on the Adrenalin Home screen and under Settings > System.

If the standard installer fails more than once, AMD publishes a Cleanup Utility. It removes leftover driver files that block a fresh install. Third-party tools such as DDU achieve a similar result. In both cases, download the new driver first, because the cleanup process removes the current one.

How Driver Updates Work in Adrenalin

Adrenalin checks for new drivers automatically and posts a notification on the Home tab. You can also check manually under Settings > System > Check for Updates.

Recommended vs Optional Drivers

AMD labels every release with one of two tags, and the difference matters:

• Recommended (WHQL): A Microsoft-certified build that has passed stability testing. This is the safer default for most systems.
• Optional: A newer build that usually adds optimization for a specific new game. It may also carry regressions, so install it only when you need the fix it provides.

How Often Should You Update?

A monthly check is a reasonable habit. Additionally, update when a game you play receives a launch-day driver or when AMD publishes a WHQL release. There is no benefit to installing every optional build, especially on a work machine.

How to Roll Back a Driver

Open Device Manager, expand Display adapters, right-click the GPU, and choose Properties > Driver > Roll Back Driver. Windows keeps the previous package for a limited time, so act quickly. Alternatively, download an older Adrenalin build from AMD’s site and install it over the current version.

Core Features Explained

HYPR-RX: One-Click Performance Profiles

HYPR-RX applies several performance features at once with a single toggle. Depending on hardware and game support, it can enable Radeon Super Resolution, Radeon Boost, Radeon Anti-Lag, and AMD Fluid Motion Frames. Consequently, users who do not want to tune settings manually get a balanced configuration in seconds.

AMD also offers HYPR-RX Eco on some systems. That profile prioritizes power savings instead of maximum frame rate, which suits laptops and handhelds. Both profiles can be applied globally or per game.

Radeon Super Resolution (RSR)

Radeon Super Resolution is a driver-level upscaler built on FSR 1.0 technology. It renders a game at a lower resolution, then scales the image to your monitor’s native resolution. Because the driver does the work, RSR functions in thousands of titles that never added FSR support.

To use it, lower the in-game resolution below native, then enable RSR in Adrenalin. The game should run in exclusive fullscreen mode for the feature to activate. RSR requires RDNA hardware, so Radeon RX 5000 series or newer.

FidelityFX Super Resolution (FSR)

FSR is AMD’s open-source upscaling technology, and it differs from RSR in one key way: developers build it into the game. As a result, FSR offers more quality modes and better image quality than RSR.

FSR 1 works on almost any GPU, including NVIDIA and Intel models. FSR 2 replaced spatial upscaling with temporal data. FSR 3 added frame generation that can run alongside upscaling. FSR 3.1 separated the two, so frame generation can pair with other upscalers. FSR 4 uses machine learning and debuted on RDNA 4 hardware.

Because FSR runs inside the game, you enable it from the graphics menu rather than from Adrenalin. Meanwhile, the Adrenalin panel only exposes upscaling controls on supported AMD cards.

AMD Fluid Motion Frames (AFMF)

AMD Fluid Motion Frames is driver-level frame generation. It inserts an interpolated frame between two rendered frames, which can roughly double the displayed frame rate. Unlike FSR 3 frame generation, AFMF does not require developer support.

AFMF needs a Radeon RX 6000 series card or newer. It works best when the base frame rate already sits at 60 FPS or higher. At lower frame rates, added latency and visible artifacts become noticeable. Therefore, pair AFMF with upscaling when a game runs slowly.

Radeon Anti-Lag and Anti-Lag+

Radeon Anti-Lag reduces the delay between an input and the frame that appears on screen. It works by limiting how many frames the CPU queues ahead of the GPU. The feature suits competitive shooters where reaction time matters.

Anti-Lag+ uses tighter per-game integration. Its 2023 rollout conflicted with anti-cheat systems in some titles, and AMD disabled it shortly after launch. Availability today depends on your driver branch and the specific game.

Radeon Chill, Radeon Boost, and Image Sharpening

Radeon Chill caps the frame rate and adjusts it based on mouse movement. When you stand still, the cap drops; when you move, it rises. Meanwhile, the GPU draws less power and runs cooler.

Radeon Boost lowers resolution during fast camera motion, when fine detail is hardest to notice. AMD maintains a supported game list, so check compatibility before enabling it. Radeon Image Sharpening adds contrast-adaptive sharpening to offset the softness that upscaling introduces. It is often paired with RSR.

ReLive: Recording, Streaming, and Instant Replay

ReLive is the capture component of Adrenalin. It records gameplay, captures screenshots, and streams to platforms such as Twitch and YouTube. Instant Replay keeps a rolling buffer of recent gameplay, which you can save after something worth keeping happens.

Recording consumes GPU resources. Therefore, lower the capture resolution or bitrate on slower cards. Files save to a folder you choose in the Record & Stream tab, and hotkeys for each action can be reassigned there.

Performance Metrics Overlay

The performance overlay displays frame rate, frame time, GPU and CPU usage, temperature, power draw, and VRAM usage. Press Ctrl+Shift+O to toggle it. You can also log the data to a CSV file for later review.

If the numbers look wrong, another monitoring tool is probably interfering. Close MSI Afterburner, RivaTuner Statistics Server, or similar software and restart Adrenalin. The overlay should then read correctly.

Tuning: Overclocking, Undervolting, and Fan Curves

The Tuning tab controls GPU clock speeds, voltage, power limits, and fan behavior. It offers three approaches:

• Automatic: AMD applies a tested overclock and undervolt automatically.
• Manual: You set clock speeds, voltage, and power limits yourself.
• Fan tuning: Define a temperature-based curve, or force a fixed fan speed.

Undervolting is usually the better first step. It lowers temperatures and power draw without raising clock speeds, so stability risk stays low. Overclocking adds performance but also adds heat and instability.

Every GPU sample behaves differently, so a setting that works on one card may crash another. Test each change with a stress test and a real game. If the screen goes black or the driver resets, the setting is unstable. Check your card’s warranty terms before making manual changes.

Display and Video Options

The Display tab handles resolution, refresh rate, color depth, and scaling. It also toggles AMD FreeSync, the adaptive sync technology that matches a monitor’s refresh rate to the GPU’s output. Virtual Super Resolution renders above the monitor’s native resolution and then downsamples, which improves edge detail in some games.

The Audio & Video tab adds video upscaling and fluid motion for playback. Additionally, AMD Noise Suppression filters background sound from a microphone on supported hardware.

AMD Adrenalin vs NVIDIA App

Both suites are free and perform the same basic job. However, they differ in how they deliver upscaling and frame generation.

The most important difference is compatibility. FSR runs on NVIDIA and Intel GPUs, so a GeForce owner can use it inside a supported game. By contrast, RSR and AFMF work only on Radeon hardware. Meanwhile, DLSS and DLSS Frame Generation stay exclusive to RTX cards.

Common Mistakes to Avoid

Most driver complaints trace back to a handful of avoidable errors. These are the ones that appear most often:

• Skipping a clean install when switching brands. Leftover files from a previous GPU vendor cause crashes and black screens. Use a cleanup tool before installing Adrenalin.
• Installing optional drivers on a work machine. Optional builds may carry regressions. Stick to Recommended (WHQL) releases unless you need a specific fix.
• Enabling RSR without lowering in-game resolution. RSR only activates when the game renders below native resolution. Otherwise, it does nothing.
• Stacking upscalers. Running FSR inside a game while RSR is also enabled produces a soft, over-processed image. Pick one.
• Expecting driver features to work everywhere. Radeon Boost, Anti-Lag+, and similar tools depend on per-game support lists.
• Blaming stutter on the driver. A frame cap from Radeon Chill, FreeSync limits, or an in-game limiter often explains uneven pacing.
• Overclocking without stability testing. A crash mid-session can corrupt saves or interrupt work. Test changes before trusting them.
• Ignoring the laptop vendor’s driver. Some notebooks ship customized builds. Check the manufacturer’s support page before forcing a generic AMD release.

Troubleshooting Common Problems

Adrenalin Won’t Open

Restart the system first, then check for pending Windows updates. If that fails, reinstall the driver using the Factory Reset option.

The Installer Fails or Freezes

Close all overlays and antivirus tools, then run the installer as administrator. If the failure repeats, run the AMD Cleanup Utility and try again.

Black Screen After an Update

Boot into safe mode, remove the driver with a cleanup tool, and install the previous known-good build. This usually resolves the issue.

Games Crash After a Driver Change

Roll back through Device Manager, or download the older Adrenalin release from AMD’s site. Verify game files afterward, because a partial shader cache can also cause crashes.

FSR Options Are Missing In-Game

The game must support FSR and expose it in its own graphics menu. If the option is absent, the title likely supports an older FSR version or none at all.

High Idle Power Draw

High refresh rates and multiple monitors can keep memory clocks elevated. Lowering the refresh rate or enabling a power-saving profile usually reduces idle consumption.

Frequently Asked Questions

Is AMD Software Adrenalin Edition free?

Yes. The full suite is free for all supported Radeon GPUs. No paid tier or subscription exists. free editing software options.

Can I use Adrenalin Edition with NVIDIA GPUs?

No. Adrenalin Edition only works with AMD Radeon graphics. NVIDIA owners need the NVIDIA App instead.

Does FSR work on any GPU?

FSR is open source and runs on AMD, NVIDIA, and Intel GPUs. However, the Adrenalin control panel only exposes FSR settings on AMD cards. On other brands, enable FSR inside the individual game.

How often should I update drivers?

Update when a new game releases or when AMD publishes a WHQL driver. A monthly check is a reasonable habit. Skip beta drivers unless you need a specific fix.

Why does my overlay show incorrect FPS?

The overlay may conflict with other monitoring tools. Close MSI Afterburner or RTSS and restart Adrenalin Settings. The overlay should then read correctly.

Does Adrenalin Edition work on laptops?

It works on laptops with AMD Radeon graphics. However, some manufacturers ship customized drivers. Those versions may be older than the official AMD release, so check the laptop vendor’s support page first.

What is the difference between RSR and FSR?

FSR is built into a game by its developer. RSR is applied by the driver and works in games without FSR support. Therefore, RSR has broader compatibility but fewer tuning options.

Can I roll back a driver update?

Yes. Open Device Manager, select the GPU, and choose Properties > Driver > Roll Back Driver. Windows keeps the previous version for a limited time.

How does Adrenalin handle multiple AMD GPUs?

Most systems with two AMD GPUs fall into one of two groups. If both cards share an architecture family, the installer detects them and installs a unified driver package. However, mixed families — a Polaris RX 580 alongside an RDNA 2 RX 6700 XT, for example — may only update the primary GPU or trigger an incompatibility warning. In that case, install the driver manually for each generation. Conflicts can follow, so a clean install using the Factory Reset option is the safer route when adding or removing a card. CrossFire is largely deprecated in modern titles, so multi-GPU setups now serve compute and VR rendering more than gaming.

Can Adrenalin calibrate HDR for games and desktop content?

Partly. Under the Display tab, you can enable HDR on supported monitors and adjust brightness, contrast, and color temperature. Adrenalin does not offer per-game HDR calibration or advanced tone mapping, though. For accurate results, calibrate with the Windows 11 HDR Calibration app first, then use Adrenalin for fine-tuning. Additionally, some games ignore driver-level HDR adjustments and rely on their own sliders. Enabling HDR also raises power draw slightly, so monitor GPU temperatures on a laptop.

Final Thoughts

AMD Software Adrenalin Edition is more than a driver updater. It bundles upscaling, frame generation, latency reduction, capture tools, and tuning controls into one free package. For most users, the Recommended (WHQL) branch plus HYPR-RX delivers a solid balance of performance and stability. top free 3D modeling software.

Advanced users can go further with undervolting, per-game profiles, and RSR tuning. Either way, keep the install clean, avoid optional drivers unless needed, and test every hardware change. That routine prevents the majority of driver problems before they start.

Adobe Creative Cloud guide for designers

In-Depth Guide

Once you have installed AMD Software Adrenalin Edition, the real value comes from tuning it around your hardware, display, and the games you actually play. The suite is more than a front end for the Radeon graphics driver; it is a control center for image quality, latency, power, recording, and streaming. A good starting point is the Home tab, where driver updates and recommended settings appear. Avoid installing every optional feature blindly. Instead, update the driver after checking release notes for your GPU model, then use a clean install only when you are troubleshooting persistent stutter, crashes, or a major Windows upgrade.

Building Game Profiles and Radeon Software Performance Tuning

Game profiles are where Adrenalin becomes genuinely personal. Create a profile for each competitive or demanding title, then decide whether you want maximum frame rate, consistent frame pacing, or visual fidelity. For esports, lower Radeon Anti-Lag, disable enhanced sync if it causes tearing, and keep Radeon Image Sharpening mild. For single-player games, raise quality settings and use Radeon Chill to cap frame rates during quiet moments, which can reduce heat and fan noise. Radeon Super Resolution can help older or lower-tier GPUs when a game lacks modern upscaling, though it works best at 1080p or 1440p with a slightly lower render resolution.

The Performance tab is useful for more than monitoring. Tuning controls let you adjust fan curves, power limits, and clock offsets, but small steps matter. Increase gradually, test in the same scene for several minutes, and watch junction temperature and clock stability. The Adrenalin overlay gives instant access to FPS, frame time, GPU utilization, CPU utilization, and VRAM usage without alt-tabbing. If a game feels inconsistent but average FPS looks fine, inspect frame time and 1% lows rather than chasing a higher benchmark number.

Media and connectivity features deserve equal attention. Instant Replay, Recording, and Streaming can run through the same overlay, with separate hotkeys and quality settings. AMD Link can stream games to a phone, tablet, or secondary PC, which is handy for couch play or remote troubleshooting. For laptop users, check the power-saving options and per-app GPU preferences in Windows, because Adrenalin settings can be overridden by OS power plans. Finally, export your tuning profiles before a clean driver install. That small step preserves hours of testing and makes future updates far less disruptive.

Additional FAQs

Does AMD Software Adrenalin Edition still support older Radeon GPUs?

It can, but support depends on the GPU generation and driver branch. Newer Adrenalin releases focus on current Radeon RX and integrated graphics, while older cards may be moved to a legacy driver branch with security and stability fixes rather than new features. If you have an older GPU, check AMD’s official legacy driver page before downloading the latest Adrenalin package. The interface may look similar, but features such as Fluid Motion Frames, Anti-Lag+, or newer Radeon Image Sharpening options may not be available on unsupported hardware.

Can Adrenalin settings conflict with in-game settings or other overlays?

Yes. Conflicts commonly occur when Adrenalin and a game both manage VSync, frame rate caps, sharpening, or anti-aliasing. For example, in-game VSync plus Radeon Enhanced Sync can produce odd pacing, and multiple frame limiters may cause stutter. Third-party overlays such as MSI Afterburner, RivaTuner Statistics Server, Discord, or Steam can also clash with the Adrenalin overlay, especially when capturing or streaming. If you see flickering, failed hotkeys, or performance drops, disable one overlay at a time, reset the game profile to defaults, then re-enable features individually to identify the conflict.
